Wrong Park Detection

Wrong Park Detection is used to identify vehicles that remain parked inside a restricted or monitored area for longer than the allowed duration. This guide walks through opening the Wrong Park application in App Stack, configuring devices and ROIs, and setting Meta Parameters for a typical deployment.

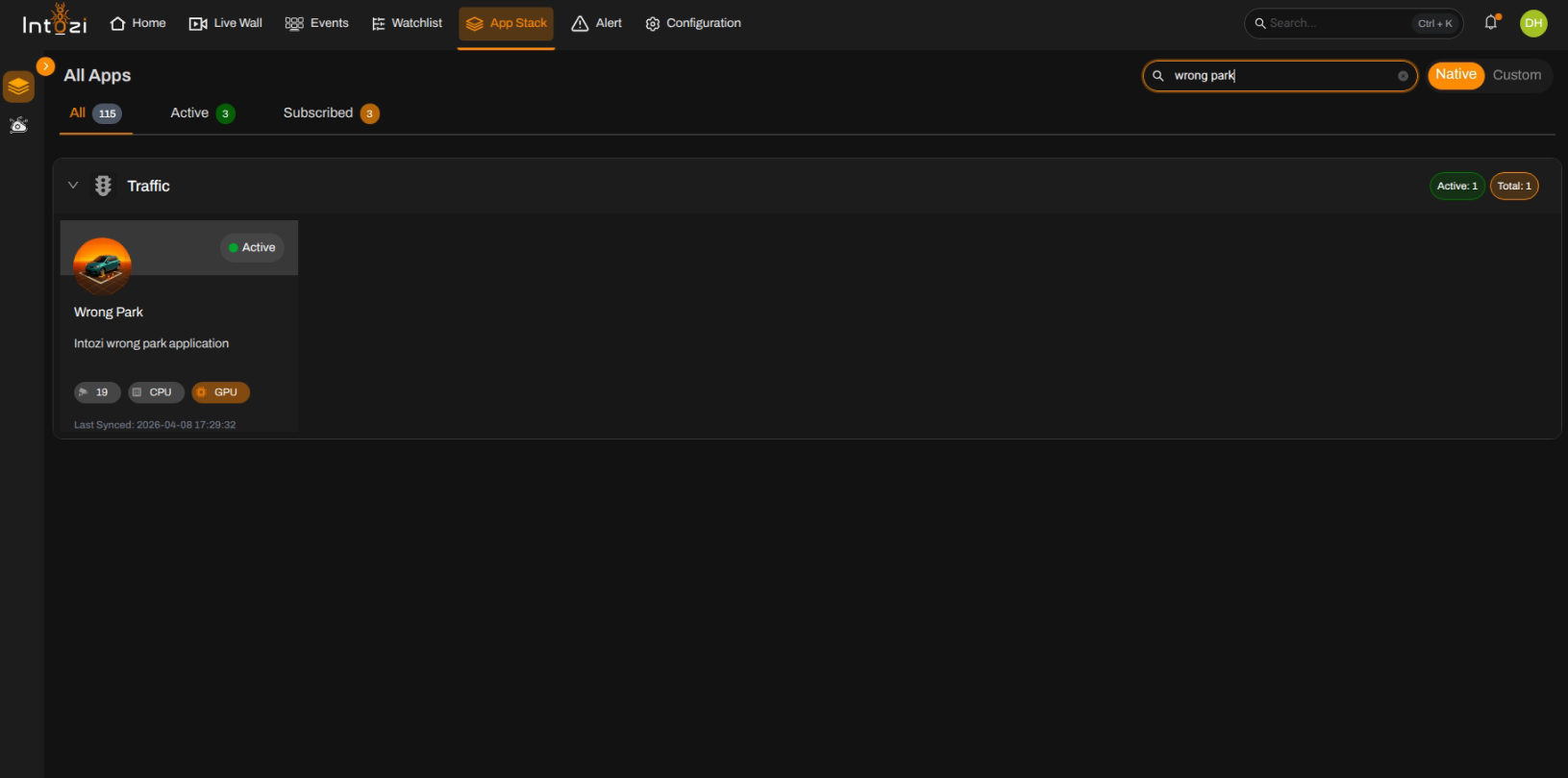

1. Finding the Wrong Park Application in App Stack

1. Open App Stack on the platform.
2. Use the search bar (usually at the top right of the dashboard).
3. Enter Wrong Park.
4. In the results, click once on the application to open it.

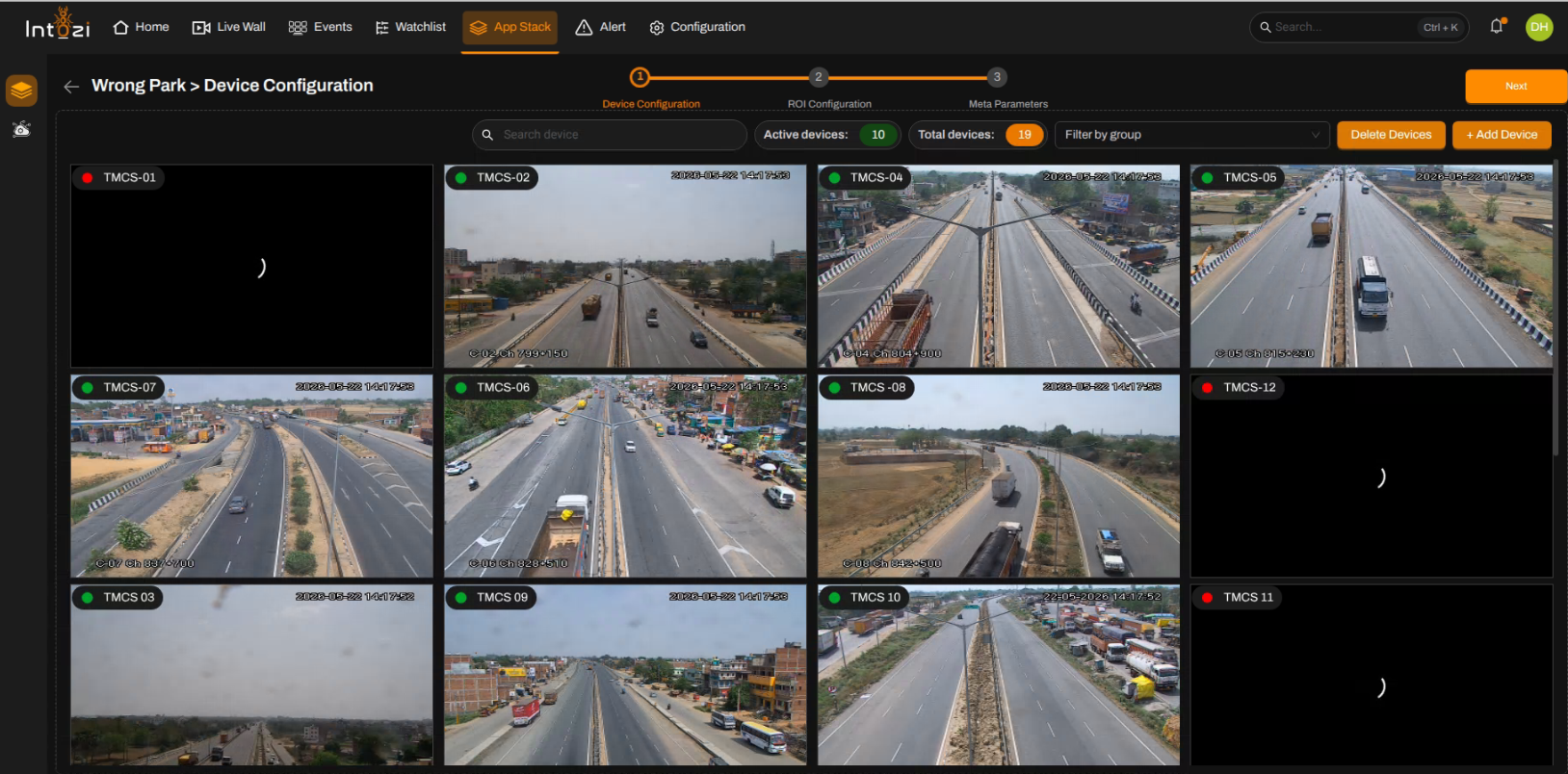

2. Device Configuration

After the application opens, you are taken to the Device Configuration page.

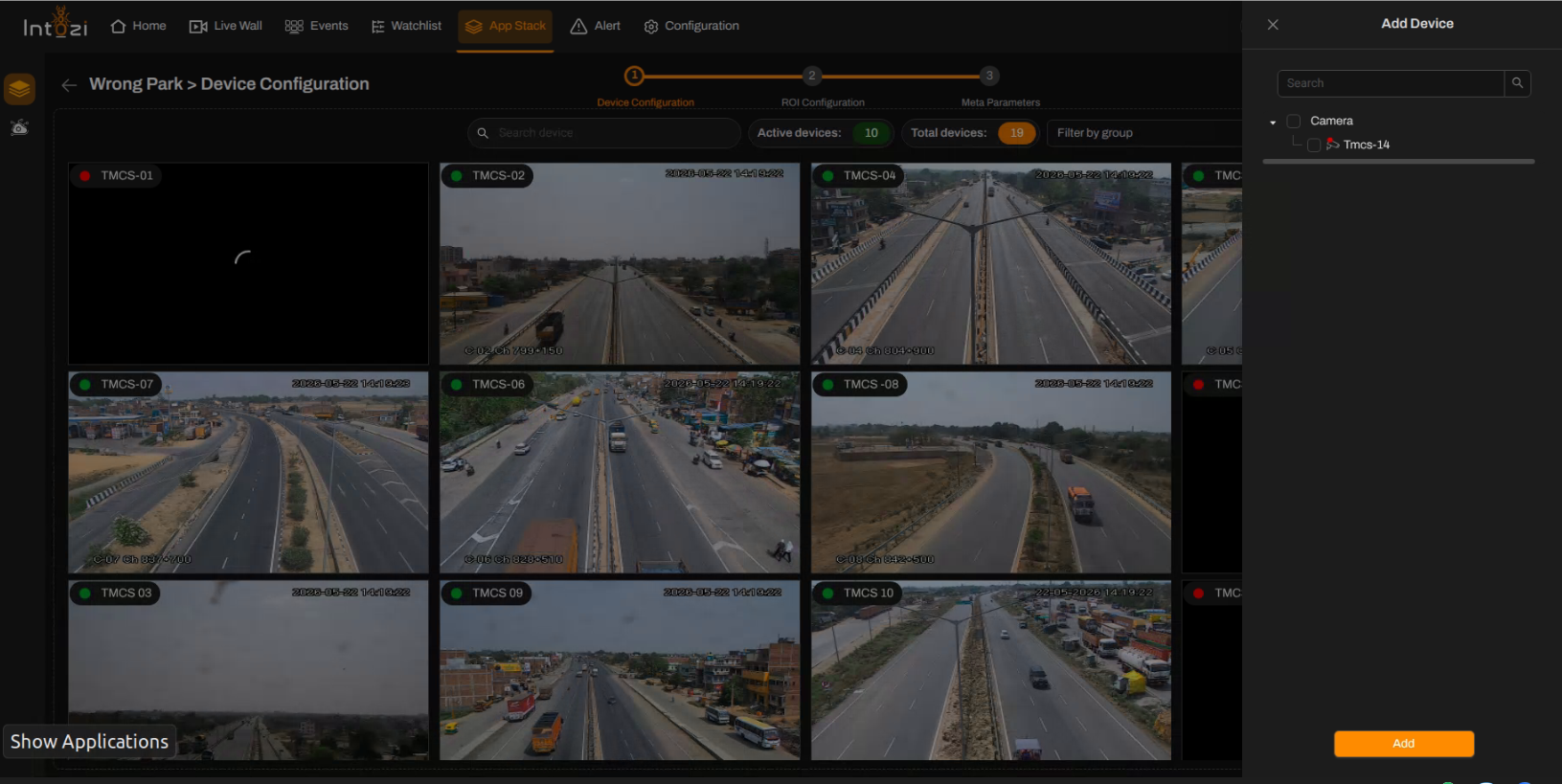

• On the right side of the page, use the option to add devices and connect the cameras you need.

• When finished, continue to the next step (ROI Configuration).

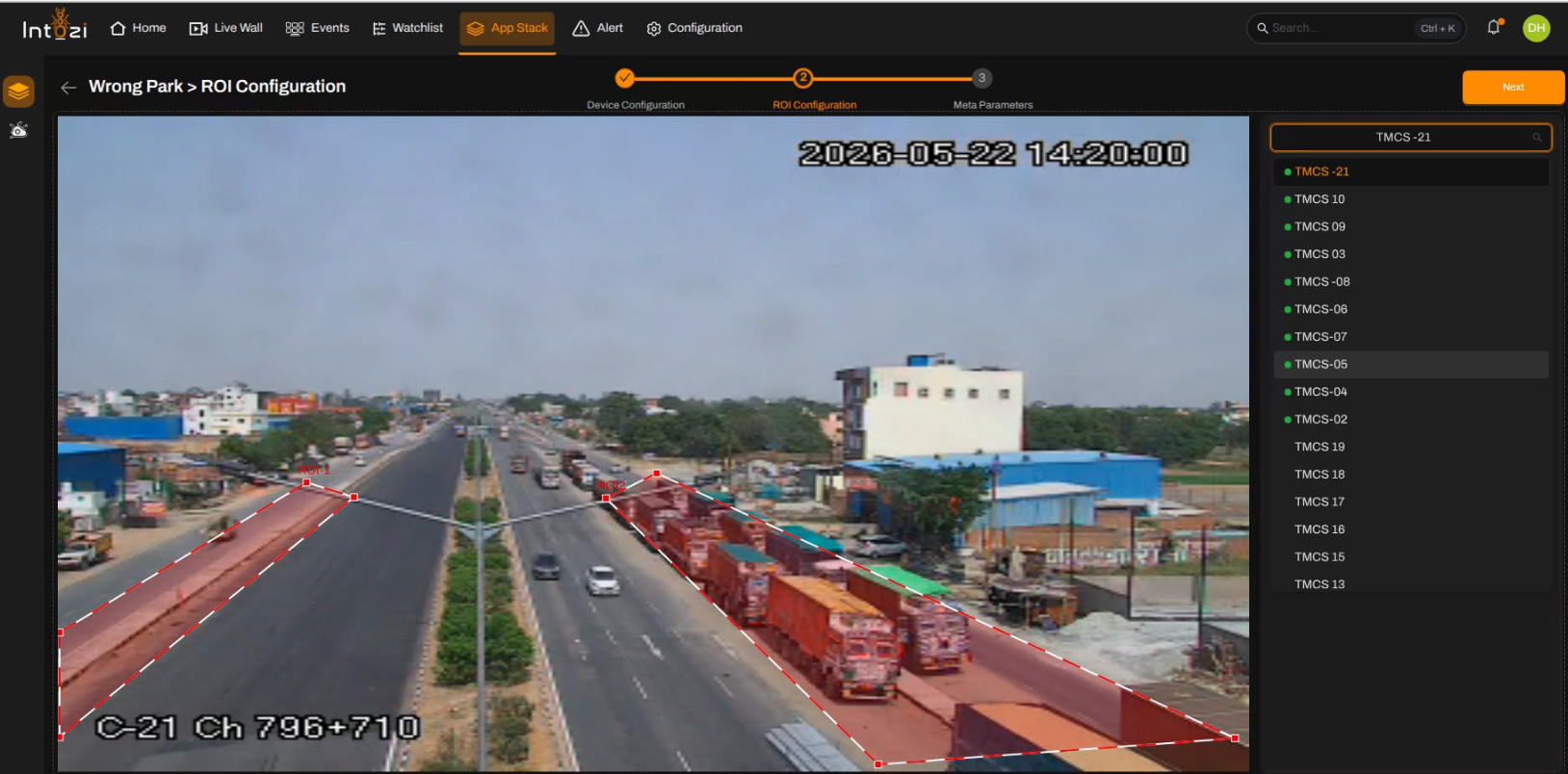

3. ROI (Region of Interest) Configuration

All devices added during the device configuration step appear here so you can draw ROIs on the correct feeds.

1. Select the device you want to configure.

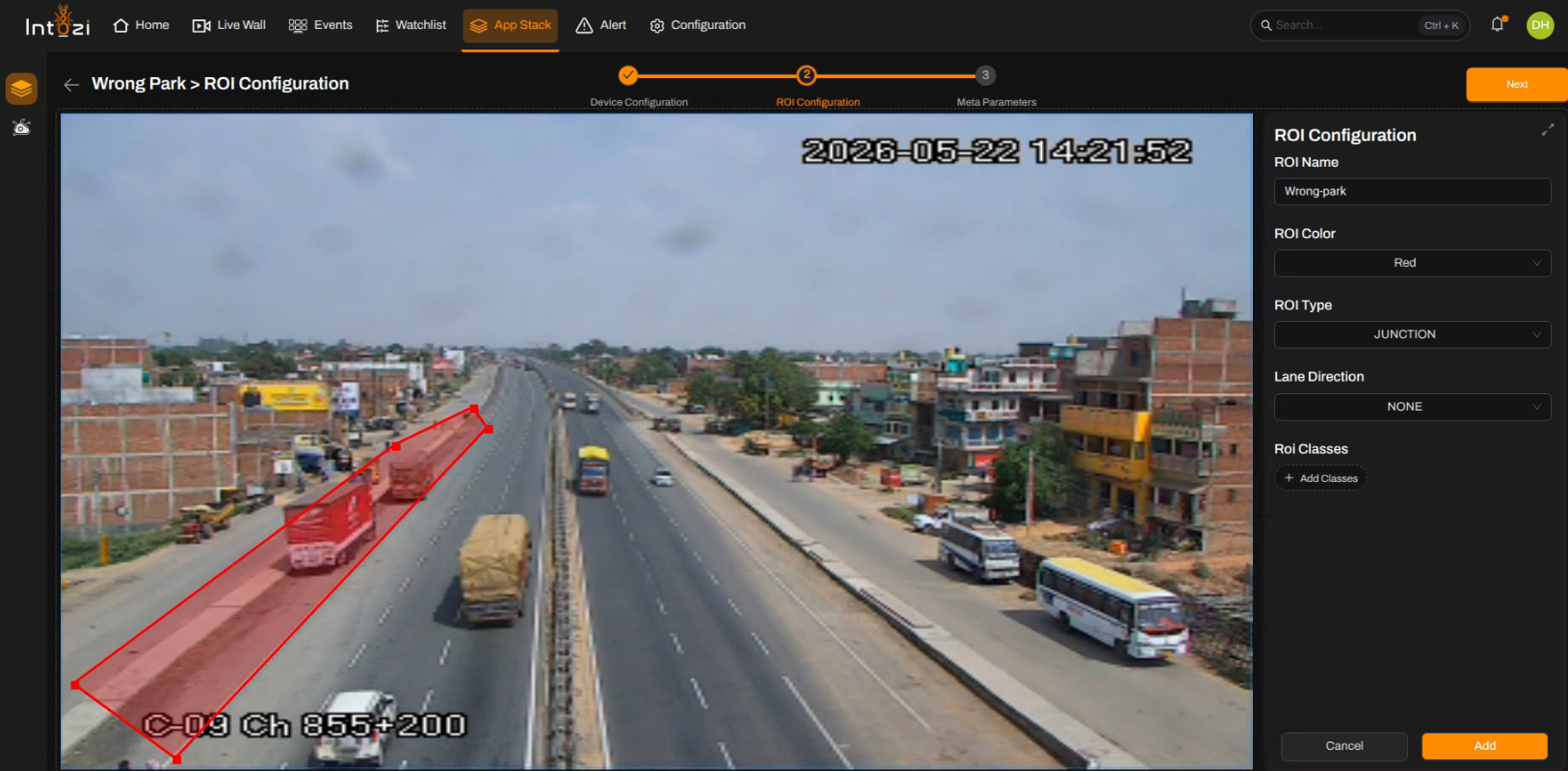

2. Click Add ROI (top right of the ROI Configuration page).

Fill in ROI Details

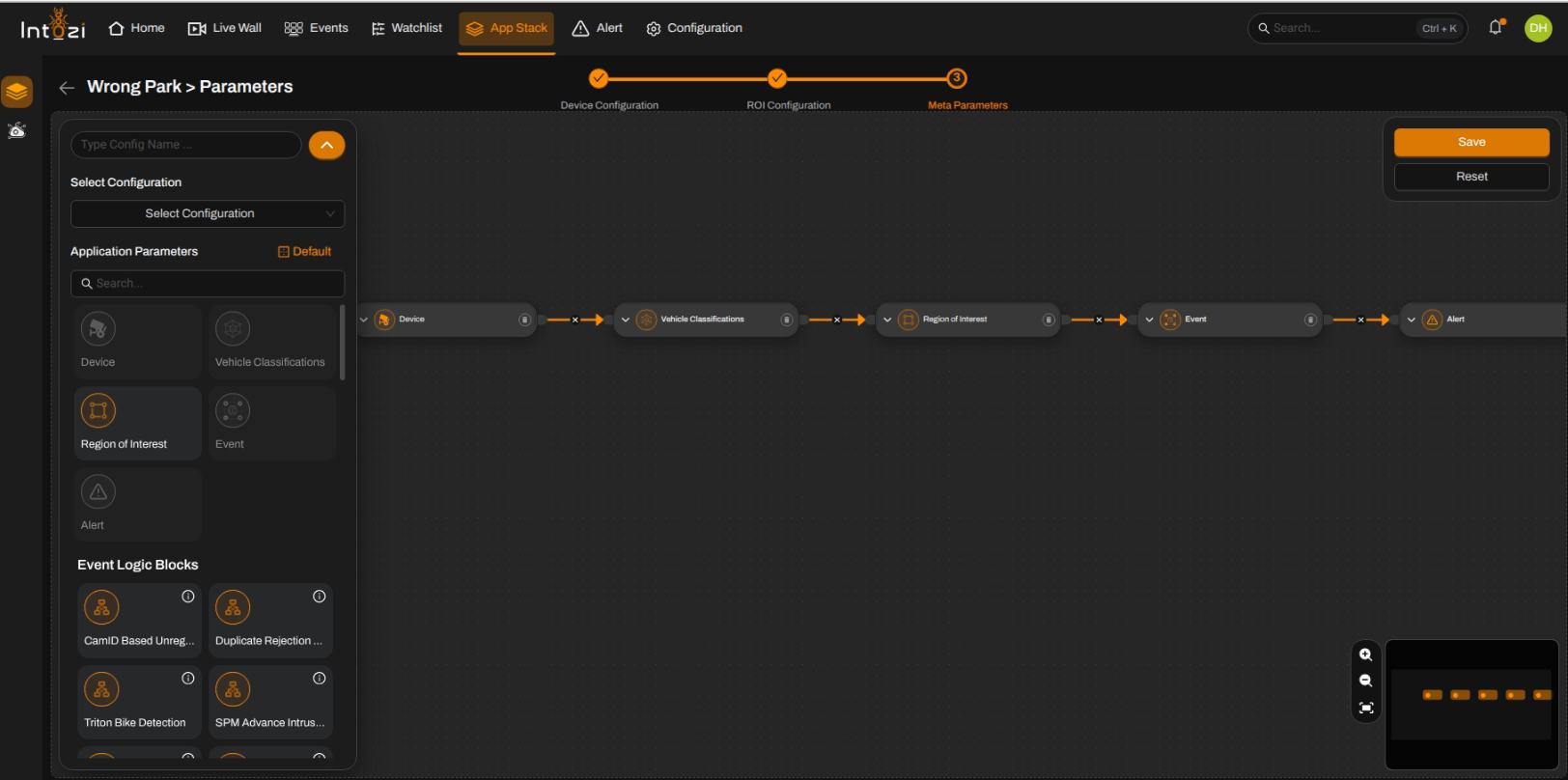

4. Meta Parameters Configuration

After ROI setup, open the Meta Parameters page.

4.1 Default vs. Custom Configuration

You can either:

• Use a default configuration, or
• Create a new custom configuration.

A default configuration typically includes the following modules:

• Device
• Vehicle Classification
• Region of Interest (ROI)
• Event
• Alert

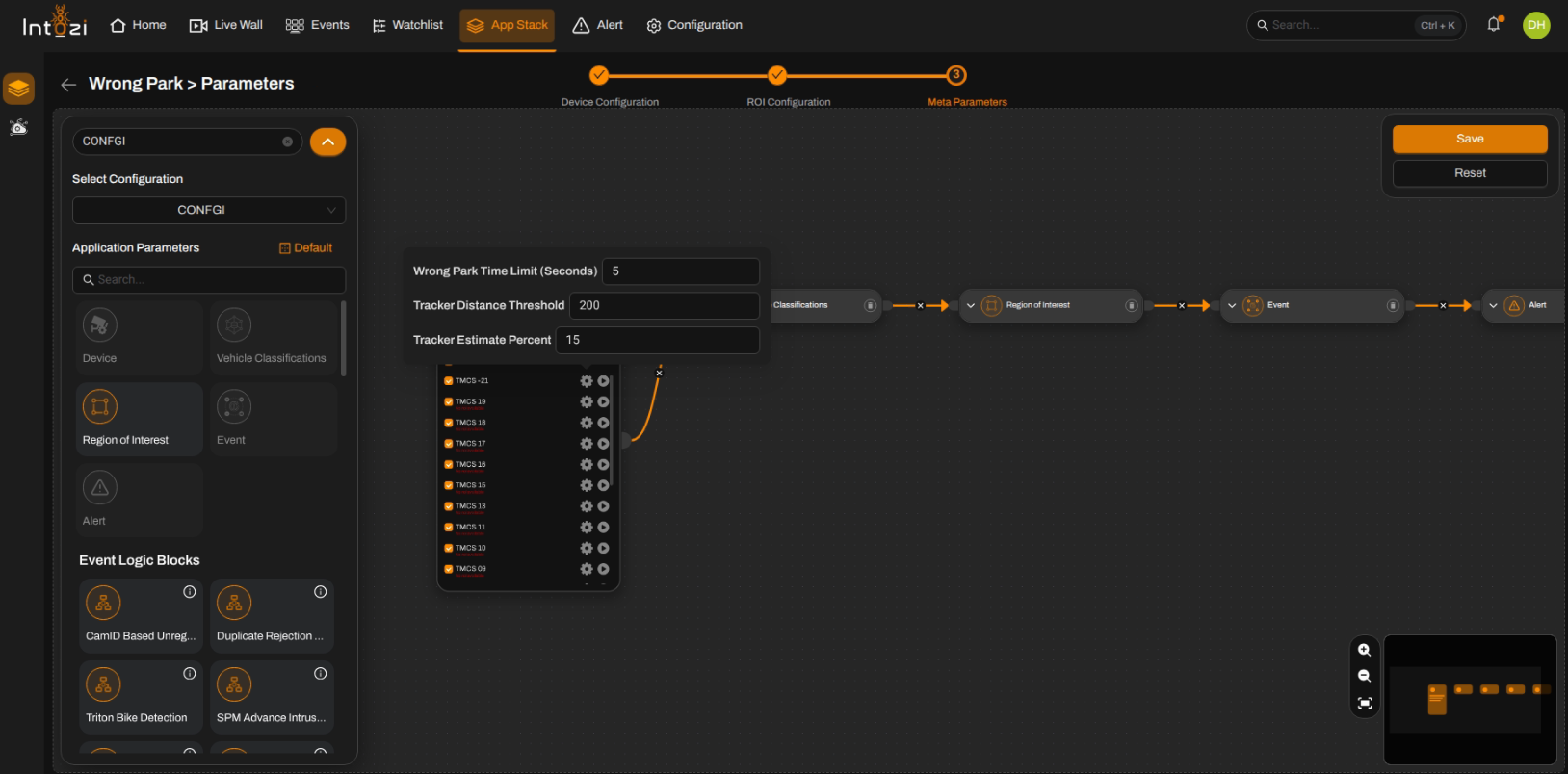

5. Device Settings

Select the required device and configure the following settings.

Available Settings

Wrong Park Time Limit (Seconds)

• Defines the duration a vehicle can remain inside the ROI.
• If the vehicle stays longer than the configured time, it will be identified as a Wrong Park Vehicle event.

Tracker Distance Threshold

• Default value: 200
• Recommended to keep at the default setting.

Tracker Estimate Percent

• Default value: 15
• Recommended to keep at the default setting.

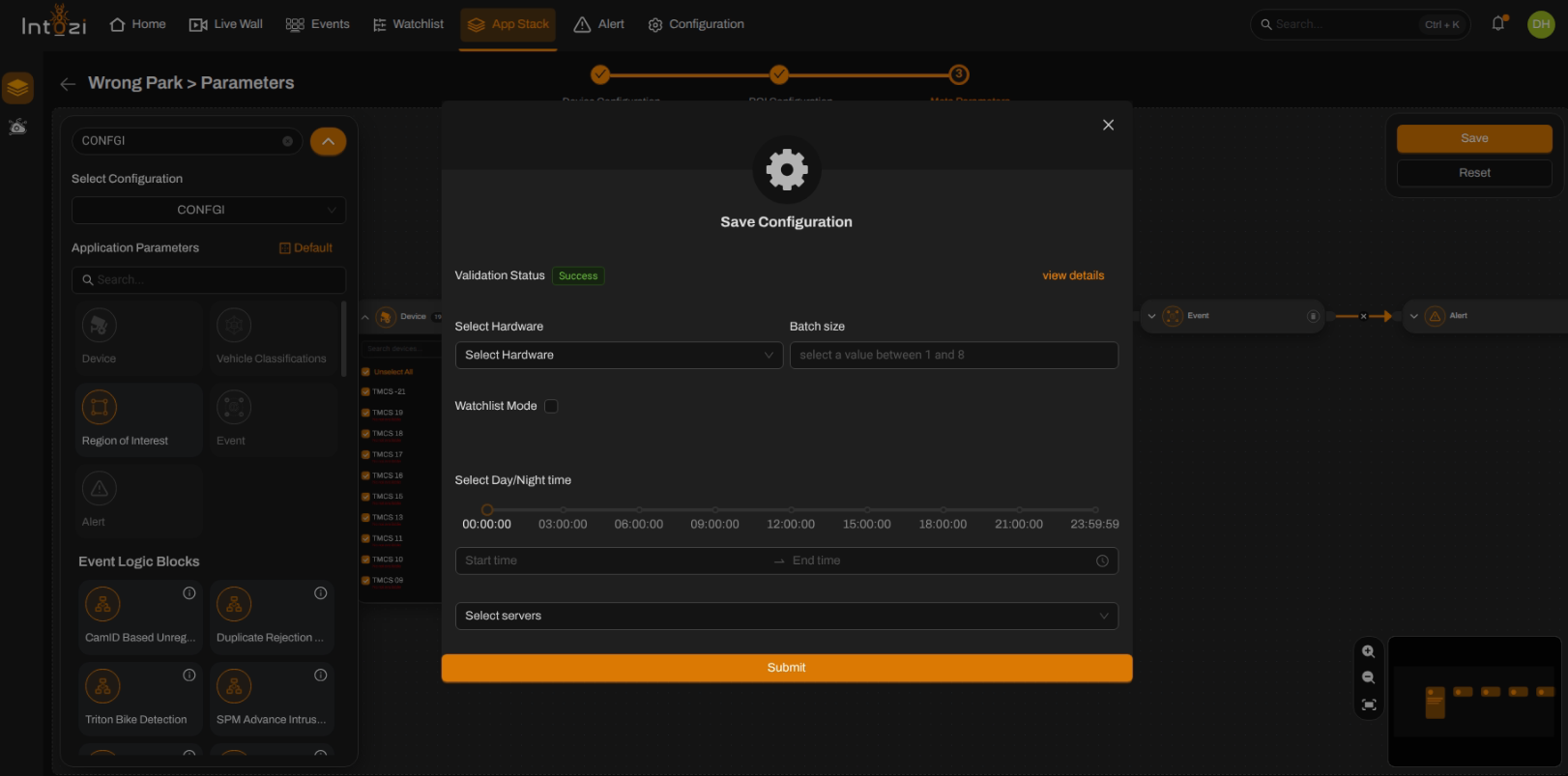

6. Final Configuration

1. Select all required devices.
2. Configure the required device parameters.
3. Select the corresponding ROIs.
4. Enter a configuration name.
5. Select the hardware type (CPU or GPU).
6. Configure batch size if required.

When everything is configured, click Save.

Conclusion

The Wrong Park Detection application helps automate vehicle parking violation monitoring using configurable ROI settings and vehicle tracking parameters.
